GNSS GPS Regular Irregular Land Distance Area Measuring Device Handheld GPS Survey Equipment
Wanggan S1 GPS land meter
2021 the newest mode GPS land meter device could surprise you for sure! Here are two different functions to help you measure area or distance and you could know the area or distance you want to know whenever you want. And also you could measure the slope when you switch to the slope function mode.

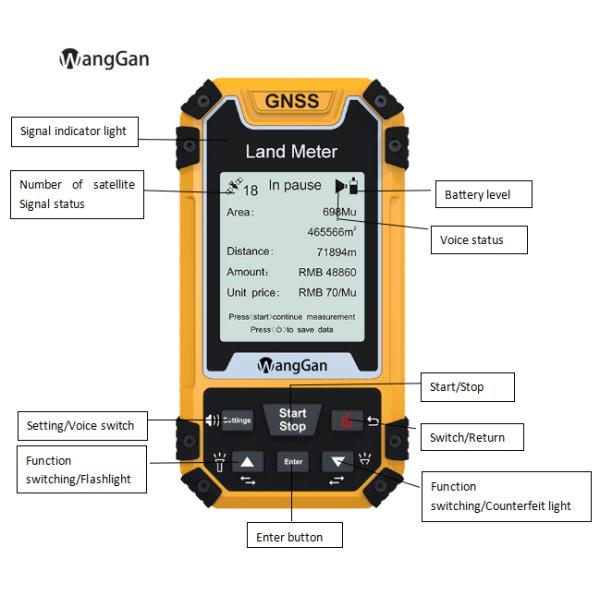

GPS Machine Interface Display:
Wanggan S1 LAND METER INSTRUMENT
GPS BDS GLONASS GALILEO SBAS Satellite Signals
Wanggan S1 land meter instrument could be used in farmland, pond, lake, fertilizer&medicine area calculation and field survey. You could do these works just by holding this Wanggan S1 instrument on your hand.
Wanggan S1 palm land meter instrument could offer two different common patterns, so this 2.4-inch large screen is easy to read no matter if it's
day or night.
Now please let me introduce the functions in Wanggan S1 and help you understand this device better
It’s used for measuring various terrain areas, such as square, rectangle, polygon, triangle, circle, oval and other irregular terrain.
Normal area measurement
.At the starting point,press the [start] button to measurement in the main interface.
. Return to the starting point in a circle around the ground,press the [stop] button to pause the measurement and view the measurement data.
. Press the
button to end measurement and save data.
Normal distance measurement
In the main interface,press the [Start] button for 3 sec to measurement at the starting point.
. Walk along the measuring line to the end point and press the [Stop] button to stop the measurement and view the measurement data.
. If the measurement is not completed,press the [Start] button again to continue the measurement. If the measurement is completed,press to save the data.
Matters need attention:
①Check whether the machine can be started up normally.
②This product powered by lithium batteries,do not put it under the sun exposure. For other lithium battery transportation and safety,please refer to relevant national regulations.
③When this product is not used for a long time,please take out the battery.
④Please turn on the product and use it in open area,the effect is the best.
⑤Affected by GPS signal,different regions receive different GPS signals,the measurement results will be inconsistent,this is normal condition,please feel free to use it.
⑥Please use the original charger to charge the device(Do not use non-conforming charger ).
